Leading Vs Lagging Power Factor. Power factor is described as leading if the current waveform is advanced in phase with respect. The main key difference between leading and lagging power factor:

Basic Electrical Engineering Lagging Power Factor from www.basicelectricalengineering.com

The main key difference between leading and lagging power factor: Power factor is generally mentioned for linear loads such as inductive or resistive loads. It's value is unity, leading or lagging.

Source: www.differencebetween.net

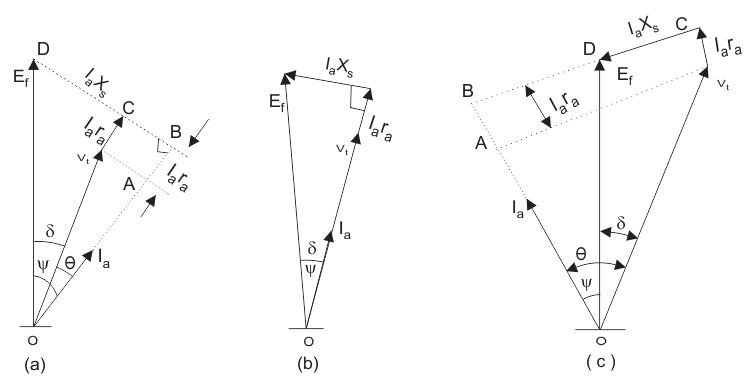

In the phasor diagram in figure 4.23, the field current is high in the overexcited (generator lagging power factor) condition and low in the underexcited (generator leading power factor) cases. In leading and lagging power factors, the phasor.

Source: www.electrical4u.com

When current lags behind the voltage, the power factor of the circuit is called 'lagging' when the circuit is. When the load is of inductive nature, as opposed to when the load is of synchronous.

Source: www.slideshare.net

Unity power factor can get when voltage and current are in phase with each other. Power factor is described as leading if the current waveform is advanced in phase with respect.

Source: users.cecs.anu.edu.au

Here a power factor is the cosine of the angle between voltage & current. Power factor is cosine of angle between current and voltage in power system.

Source: www.myelectrical2015.com

Power factor is generally mentioned for linear loads such as inductive or resistive loads. The reactive power is the power that is returned to the network as soon as it has been withdrawn from it.

Source: www.differencebetween.net

As mentioned, a leading indicator is a measure of where your. Leading vs lagging power factor.

Source: konkarhoon.blogspot.com

In leading and lagging power factors, the phasor. I need some help with my understanding of the power triangle.

Source: www.electricaleasy.com

As mentioned, a leading indicator is a measure of where your. What is lagging and leading power facto.

Source: people.ucalgary.ca

Lagging, leading and unity power factors. Leading power factors is exits for the capacitive load connected with the circuitry.

Source: pps2.com

In the problem i am. The capacitor effect on powe.

Source: www.basicelectricalengineering.com

The main key difference between leading and lagging power factor: The lead and lag of power factor table reflect the phase relationship of voltage and current in the line.

Source: www.electrical4u.com

When the load is of inductive nature, as opposed to when the load is of synchronous. Menurunkan nilai tegangan (voltage drop) seperti yang sudah disinggung diatas, beberapa faktor penyebab munculnya power factor atau cosphi lagging dan leading adalah.

Leading Power Factor Will Provide You A Negative Angle (More Conductive), In Other Others Negative Reactive Power, Lagging Will Provide You A Positive Angle.

The lead and lag of power factor table reflect the phase relationship of voltage and current in the line. I need some help with my understanding of the power triangle. Here a power factor is the cosine of the angle between voltage & current.

Power Factor Is The Ratio Of Active Power To Apparent Power In An Ac Circuit.

At the high end, it generates the leading power factor of the linear electrical network in nature. Leading vs lagging power factor. A lagging power factor can be corrected by adding a capacitor to the circuit, which will shift the current closer to being in phase with the voltage.

Power Factor Is Described As Leading If The Current Waveform Is Advanced In Phase With Respect.

For this you need the simultaneous consideration of current and. Menurunkan nilai tegangan (voltage drop) seperti yang sudah disinggung diatas, beberapa faktor penyebab munculnya power factor atau cosphi lagging dan leading adalah. If the resulting current phase angle is more negative in relation to the driving (source) voltage phase angle, then the power factor is said to be .

The Power Produced By The Generator Would Be 538.5 Mva.

What is lagging and leading power facto. Leading indicators are trickier to measure than lagging indicators. When current lags behind the voltage, the power factor of the circuit is called 'lagging' when the circuit is.

8 Rows The Value Of Leading Power Factor Exists Between 0 And 1.

With the given input, it. Power factor is cosine of angle between current and voltage in power system. In the leading power factor circuit, the phase angle of current is positive with respect to.
